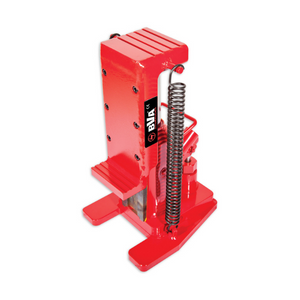

Steerman BVA Hydraulic Toe Jack
Brand: Steerman
Quick Overview:
- Capacity range: 3000kg to 15000kg
- Low entry on height of toe
- Operating lever rotate 220 degrees
- Heat treated and chrome plated
The Steerman range of BVA hydraulic toe jacks - formerly known as HTJ - are perfect for working in confined spaces where lifting and positioning of heavy machinery, fabricated steel structures, and general engineering applications is required.
Available in 4 lifting capacities - 3t, 6t, 10t and 15t - these hydraulic toe jacks are designed with an extremely low toe height, an operating lever that rotates 220 degrees, and a carry handle for easy handling.
Built with a chrome-plated plunger that improves seal life and optimises performance, each unit is designed with a U.S Patented by-pass device to protect hydraulic system from over travel damaage.
| Model | Claw Capacity (kg) | Head Capacity (kg) | Stroke (mm) | Closed Claw Height (mm) | Closed Head Height (mm) | Base Size (LxW) (mm) | Weight (mm) |
|---|---|---|---|---|---|---|---|
| BVA-3 | 3000 | 3000 | 130 | 16 | 230 | 215 x 190 | 17.8 |
| BVA-6 | 6000 | 6000 | 130 | 22 | 267 | 280 x 190 | 27.2 |
| BVA-10 | 10000 | 10000 | 130 | 28 | 280 | 295 x 234 | 39.5 |
| BVA-15 | 15000 | 15000 | 130 | 28 | 332 | 316 x 272 | 54.3 |
